If you’ve ever wondered about your car’s AC pressure when the engine is off, you’re not alone. Many car owners and DIY mechanics find themselves puzzled by pressure gauge readings that seem abnormal. Understanding what’s normal – and what’s not – can help you diagnose potential issues before they become expensive repairs.
This comprehensive guide will walk you through normal pressure ranges, factors affecting readings, and how to troubleshoot common problems with your vehicle’s air conditioning system.
Normal AC Pressure Ranges When Car Is Off
A typical AC pressure gauge showing normal readings when a vehicle is off
When your car’s engine is off, the AC system should reach a state of equilibrium where the pressure equalizes throughout the system. This is known as “static pressure” and is primarily influenced by the ambient temperature and the type of refrigerant in your system.
Static Pressure Explained
Static pressure refers to the pressure reading when the compressor isn’t running. Think of it like a balloon that’s been tied off – the pressure inside remains constant until external factors (like temperature) change it. In your car’s AC system, both the high-side and low-side pressures should eventually equalize to the same reading when the car is off.
| Refrigerant Type | Ambient Temperature (°F) | Normal Static Pressure (PSI) | Potential Issue if Lower | Potential Issue if Higher |
| R-134a | 70°F | 70-80 PSI | Refrigerant leak | Contamination or overcharge |
| R-134a | 90°F | 90-100 PSI | Refrigerant leak | Contamination or overcharge |
| R-1234yf | 70°F | 75-85 PSI | Refrigerant leak | Contamination or overcharge |
| R-1234yf | 90°F | 95-105 PSI | Refrigerant leak | Contamination or overcharge |
A key point to remember: the pressure in your AC system when the car is off should roughly match the ambient temperature in Fahrenheit when using R-134a refrigerant. For example, if it’s 75°F outside, your static pressure should be approximately 75-85 PSI.
Factors Causing AC Pressure Variations When Car Is Off
Several factors can influence your car’s AC pressure readings when the engine is off. Understanding these variables helps you accurately interpret gauge readings and avoid misdiagnosis.
Ambient Temperature
Temperature is the most significant factor affecting static pressure. Refrigerant pressure has a direct relationship with temperature – as temperature rises, so does the pressure. This is why the same system might show 70 PSI on a cool morning but 95 PSI on a hot afternoon.
Pro Tip: Always note the ambient temperature when taking pressure readings. A reading that seems “high” might actually be normal if it’s a hot day.
Refrigerant Type
Different refrigerants have different pressure-temperature relationships. Modern vehicles typically use either R-134a (in older vehicles) or R-1234yf (in newer models manufactured after 2015). R-1234yf generally operates at slightly higher pressures than R-134a at the same temperature.
System Design and Components
The design of your AC system, including the expansion valve or orifice tube, can affect pressure readings. Some systems are designed to maintain slightly different static pressures based on their specific configuration and the manufacturer’s specifications.
Recent Operation
If you’ve recently run the AC, the system may not have fully equalized yet. It can take 15-30 minutes for pressures to completely stabilize after the compressor stops running. Taking readings too soon after operation can give misleading results.
AC system pressure equalization over time after engine shutdown
Safety Implications of Abnormal AC Pressure Readings
Abnormal pressure readings when your car is off aren’t just an inconvenience – they can indicate potentially dangerous conditions that require immediate attention.
Dangers of Excessively High Pressure
When static pressure readings are significantly above normal, it could indicate an overcharged system or contamination with air or incorrect refrigerant. High pressure can lead to:
- Burst hoses or damaged seals
- Compressor failure due to excessive strain
- Refrigerant leaks that are harmful to the environment
- Reduced cooling efficiency
Warning: Never attempt to service an AC system showing abnormally high pressure. The system could be under dangerous pressure that could cause injury if components are disconnected.
Risks of Extremely Low Pressure
Pressure readings significantly below normal typically indicate a refrigerant leak. Beyond poor cooling performance, this presents several concerns:
- Environmental damage from refrigerant leaking into the atmosphere
- Compressor damage due to inadequate lubrication
- Moisture infiltration into the system, causing internal corrosion
- Potential for air and moisture to enter the system through the same leak points
Professional Help for Abnormal Pressure Readings
If your AC pressure readings are significantly outside the normal range, it’s best to consult with a certified technician. Professional diagnosis can prevent further damage and ensure safe repair.
Troubleshooting Steps for Unusual AC Pressure Values
When you encounter abnormal AC pressure readings with your car off, follow these systematic troubleshooting steps to identify the root cause before attempting any repairs.
Step 1: Verify Your Readings
Before jumping to conclusions, ensure your readings are accurate:
- Make sure the engine has been off for at least 30 minutes to allow complete pressure equalization
- Confirm you’re using the correct port for your gauge (low-side has a larger diameter than high-side)
- Verify your gauge is calibrated and functioning properly
- Note the ambient temperature to determine if the reading is appropriate
Step 2: Check for Leaks
If pressure is lower than expected, a leak is the most likely culprit:

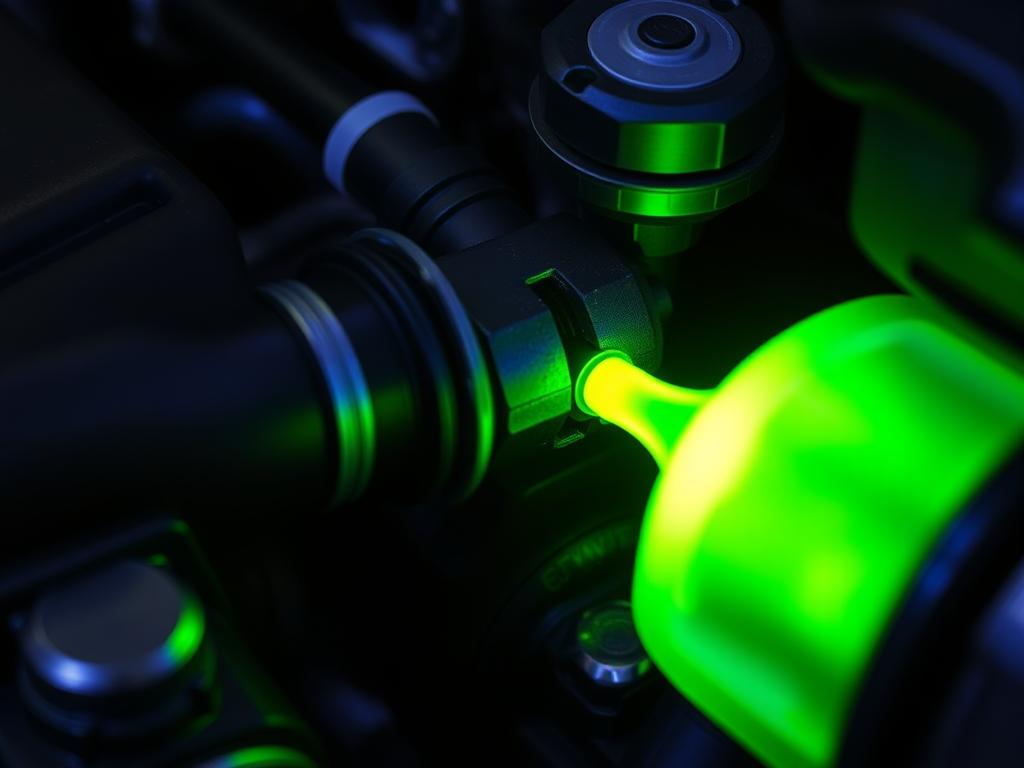

UV dye can help identify refrigerant leak locations
- Visually inspect hoses, connections, and the condenser for signs of oil residue (indicates refrigerant leak)
- Use an electronic leak detector or UV dye to locate small leaks
- Pay special attention to connection points, valve cores, and the condenser (often damaged by road debris)
- Check for corrosion on aluminum components which can lead to pinhole leaks
Step 3: Diagnose Expansion Valve Issues
The expansion valve is a common failure point that can cause pressure abnormalities:
An expansion valve showing signs of blockage
- A stuck expansion valve can cause pressure imbalances even when the car is off
- Moisture in the system can freeze at the expansion valve, creating a blockage
- Debris from compressor failure can clog the expansion valve
Real-World Scenario #1: The Overcharged System
Symptoms: Static pressure reading of 120 PSI on a 75°F day
Diagnosis: System overcharged with refrigerant, likely from a previous DIY recharge
Solution: Professional recovery and proper recharge to manufacturer specifications
Real-World Scenario #2: The Slow Leak
Symptoms: Static pressure of 45 PSI on an 80°F day, system works initially then blows warm
Diagnosis: Slow refrigerant leak from deteriorated O-ring
Solution: Replace O-ring, evacuate system, and recharge to proper level
Real-World Scenario #3: The Contaminated System
Symptoms: Erratic pressure readings, higher than normal static pressure
Diagnosis: Air and moisture contamination in the refrigerant
Solution: Complete system evacuation, replacement of receiver/drier, and proper recharge
Expert Recommendations for AC System Maintenance
Maintaining proper AC pressure isn’t just about fixing problems – preventative maintenance can help avoid issues altogether. Here are expert recommendations to keep your AC system in optimal condition:
Regular System Checks
- Have your AC system inspected annually, preferably before the hot season begins
- Check static pressure readings periodically to catch small leaks before they become major problems
- Replace the cabin air filter according to manufacturer recommendations
- Keep the condenser clean and free of debris to maintain proper heat exchange
When to DIY vs. When to Call a Pro
Safe for DIY
- Checking pressure readings
- Visual inspection for leaks
- Cleaning the condenser
- Replacing cabin air filter
- Adding refrigerant (if you have proper tools and knowledge)
Best Left to Professionals
- Refrigerant recovery and recycling
- Major component replacement
- System evacuation and moisture removal
- Compressor oil service
- Diagnosing electrical control issues

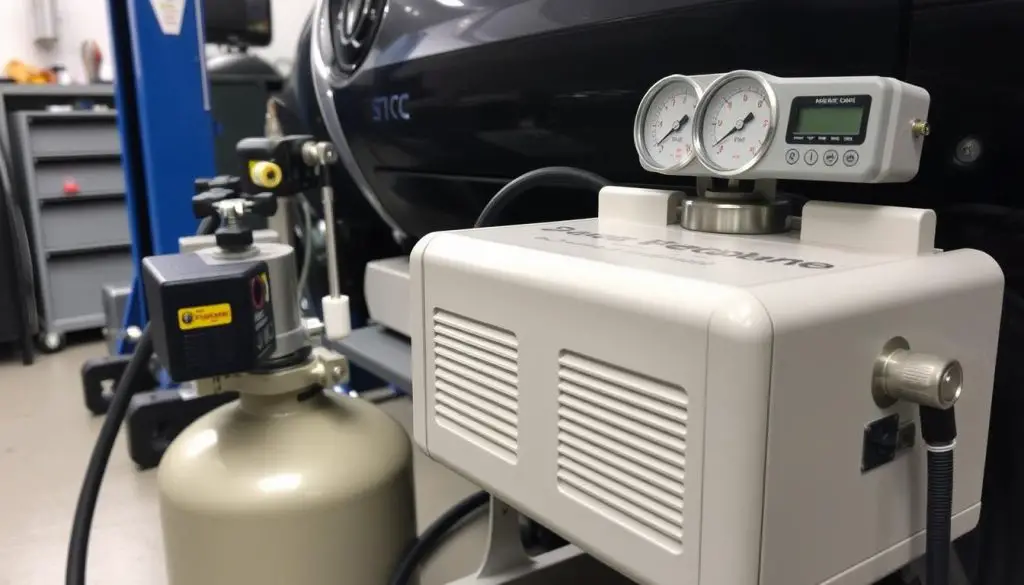

Professional AC service equipment for proper system evacuation and charging
Recommended Tools for DIY AC Maintenance
If you plan to monitor your AC system yourself, consider investing in these essential tools:
- Quality manifold gauge set compatible with your refrigerant type
- Electronic leak detector
- UV dye kit with inspection light
- Digital thermometer to check vent temperatures
- Safety equipment (gloves and eye protection)

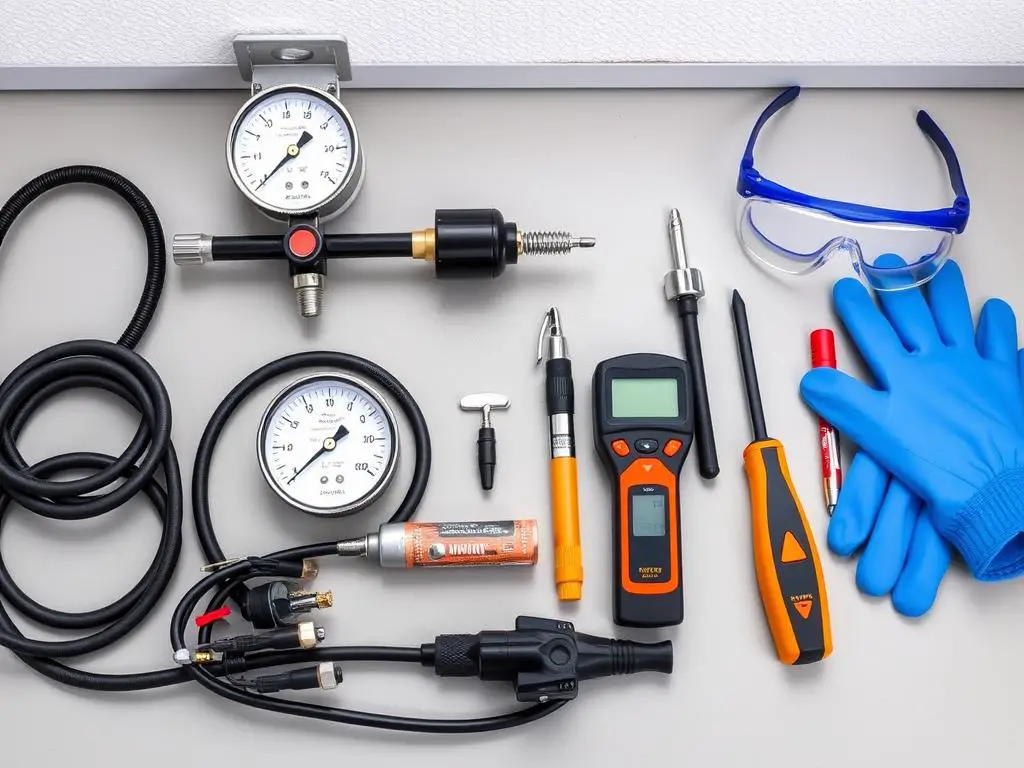

Essential tools for DIY AC system monitoring and maintenance
Frequently Asked Questions About AC Pressure
Should AC pressure be zero when the car is off?
No, AC pressure should never be zero when the car is off. A reading of zero indicates a complete loss of refrigerant, which means the system has a significant leak. Normal static pressure typically ranges from 70-100 PSI depending on the ambient temperature and refrigerant type.
Why are my high-side and low-side pressures different when the car is off?
If you’ve just turned the car off, it’s normal for pressures to take 15-30 minutes to equalize. However, if the car has been off for hours and there’s still a significant difference between high and low sides, this typically indicates a restriction in the system, often at the expansion valve or orifice tube.
Can I add refrigerant if the pressure is low when the car is off?
While you technically can add refrigerant if the static pressure is low, it’s important to first identify and fix the leak causing the low pressure. Adding refrigerant without addressing the leak is a temporary solution at best and environmentally harmful at worst. Always repair leaks before recharging.
Does outside temperature affect AC pressure when the car is off?
Yes, outside temperature significantly affects static AC pressure. As a rule of thumb, with R-134a refrigerant, the pressure in PSI will roughly match the ambient temperature in Fahrenheit. For example, on an 80°F day, expect approximately 80 PSI static pressure.
How long should I wait after turning off the car to check static pressure?
For accurate static pressure readings, wait at least 30 minutes after turning off the engine. This allows sufficient time for the pressures to equalize throughout the system and for components to reach ambient temperature.
Complete AC system diagram showing major components and pressure measurement points
Conclusion: Maintaining Proper AC Pressure
Understanding normal AC pressure when your car is off is an essential diagnostic skill for any vehicle owner. By recognizing what’s normal and what indicates a problem, you can catch issues early before they lead to expensive repairs or system failures.
Remember that ambient temperature has a significant impact on static pressure readings, and different refrigerants have different pressure characteristics. Always consult your vehicle’s service manual for specific pressure specifications, as they can vary between manufacturers and models.
While many AC issues can be diagnosed with basic tools and knowledge, some problems require professional equipment and expertise. Don’t hesitate to consult with a certified technician if you encounter complex issues or if your troubleshooting efforts don’t resolve the problem.
