Understanding High Side and Low Side AC Pressure
AC manifold gauges showing high side and low side pressure readings
Your AC system operates with two distinct pressure zones: the high side and low side. The high side begins at the compressor’s discharge port and continues through the condenser and to the expansion valve or orifice tube. Under normal operation, the high side pressure typically ranges from 200-250 PSI (for automotive systems) or 225-325 PSI (for home systems), depending on ambient temperature.
When the high side pressure drops below normal levels while the low side pressure remains normal or high, it indicates a system imbalance that requires attention. This pressure differential is crucial for proper heat exchange and refrigerant flow throughout the system.
The high side pressure is directly related to the system’s ability to release heat. When it’s too low, the heat exchange process becomes inefficient, resulting in poor cooling performance.
6 Common Causes of Low High Side AC Pressure
Several issues can cause your AC system’s high side pressure to drop below normal levels. Let’s examine the most common culprits:

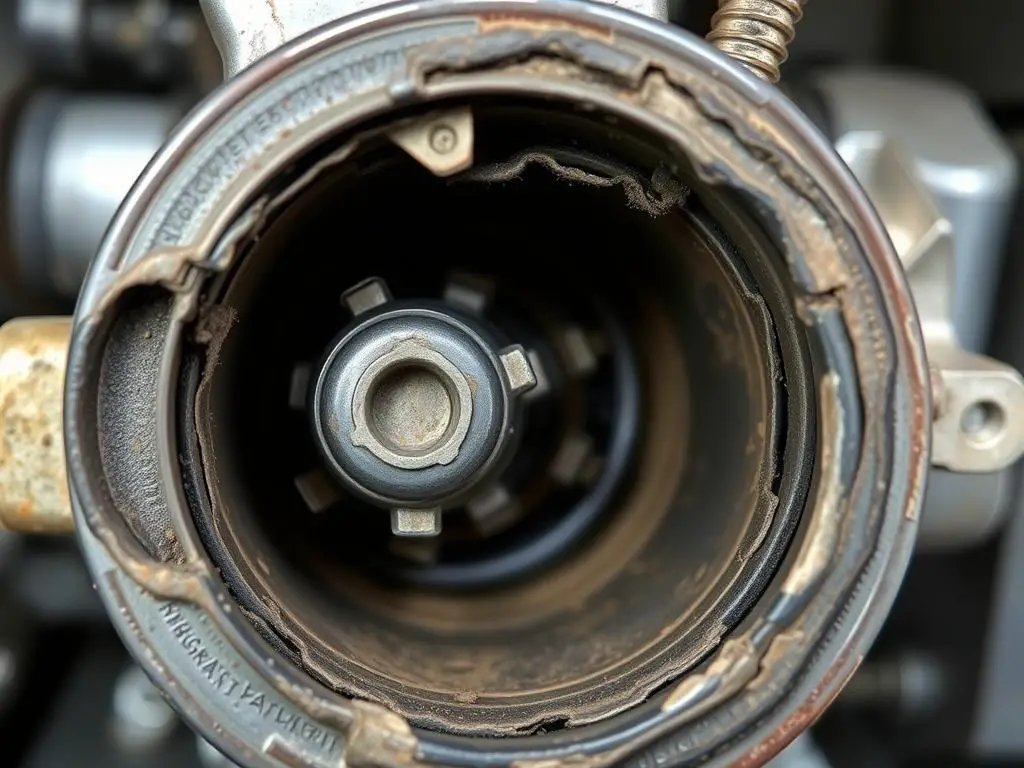

1. Faulty Compressor
The compressor is the heart of your AC system, responsible for pressurizing the refrigerant and maintaining proper circulation. When a compressor begins to fail, it may not generate sufficient pressure on the high side. Signs of compressor issues include:
- Unusual noises during operation (grinding, knocking)
- Compressor clutch not engaging properly (in automotive systems)
- Intermittent cooling performance
- High side pressure that drops when engine RPM increases (in vehicles)
Need Professional Compressor Diagnosis?
Compressor issues often require specialized tools and expertise to diagnose correctly.
2. Refrigerant Leaks
One of the most common causes of pressure imbalances is refrigerant leakage. When refrigerant escapes from the system, both pressures can be affected, but often the high side pressure drops more significantly. Leaks can occur at:
- Connection points and fittings
- Corroded or damaged condenser coils
- Deteriorated hoses or seals
- Schrader valves
- Evaporator core (often indicated by a sweet smell)
Detecting refrigerant leaks typically requires specialized equipment such as electronic leak detectors or UV dye injection. While small leaks might be repairable, significant leaks often necessitate component replacement.

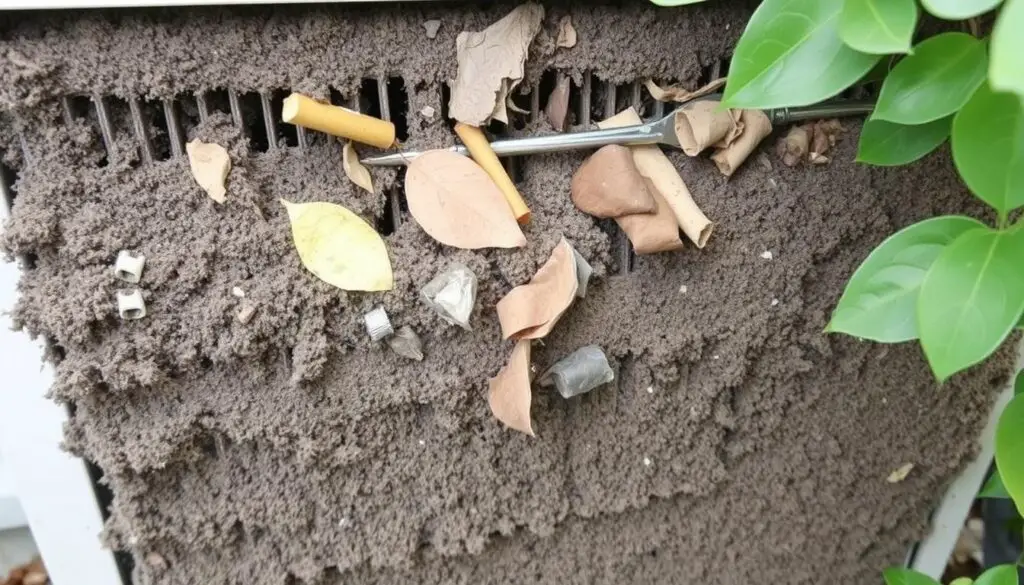

3. Clogged Condenser
The condenser’s job is to release heat from the refrigerant, allowing it to condense from a gas to a liquid. When the condenser becomes clogged with dirt, debris, or bent fins, it can’t efficiently dissipate heat, leading to abnormal pressure readings. A clogged condenser may cause:
- Low high side pressure despite adequate refrigerant charge
- Poor cooling performance, especially in hot weather
- System overheating
- Condenser fan running continuously
Regular cleaning and maintenance of the condenser coils can prevent this issue and improve system efficiency.

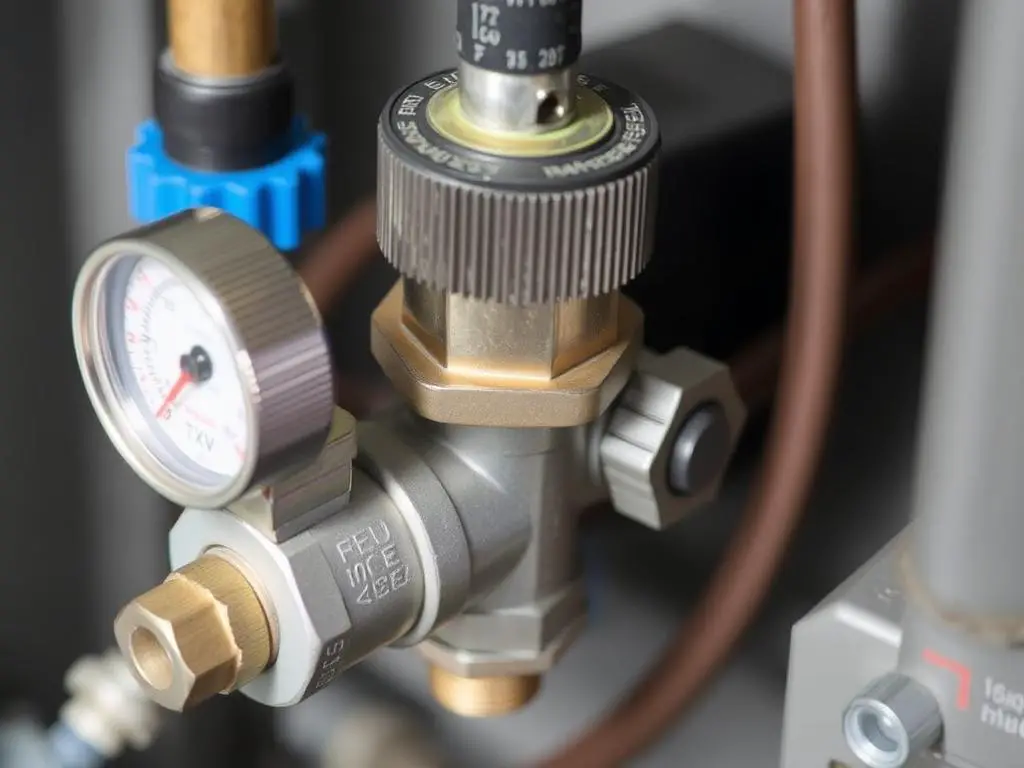

4. Expansion Valve Problems
The expansion valve or orifice tube controls refrigerant flow from the high side to the low side of the system. When stuck open, it allows too much refrigerant to pass through, causing the high side pressure to drop while the low side pressure rises. Signs of expansion valve issues include:
- AC low side high, high side low pressure readings
- Frost formation on the evaporator or refrigerant lines
- Inconsistent cooling performance
- Temperature fluctuations at the vents
5. Faulty Condenser Fan
The condenser fan plays a crucial role in heat dissipation. If the fan isn’t running at the proper speed or has failed completely, the condenser can’t release heat efficiently, resulting in abnormal pressure readings. Check for:
- Fan not spinning or spinning slowly
- Unusual fan noises
- Debris preventing fan movement
- Electrical issues with the fan motor or relay
6. Blocked Filter Drier
The filter drier removes moisture and contaminants from the refrigerant. Over time, it can become clogged, restricting refrigerant flow and causing pressure imbalances. A blocked filter drier may cause:
- Restricted refrigerant flow
- Temperature difference across the filter (one side may feel cool, the other warm)
- Noise as refrigerant tries to pass through the restriction
- Progressive worsening of cooling performance

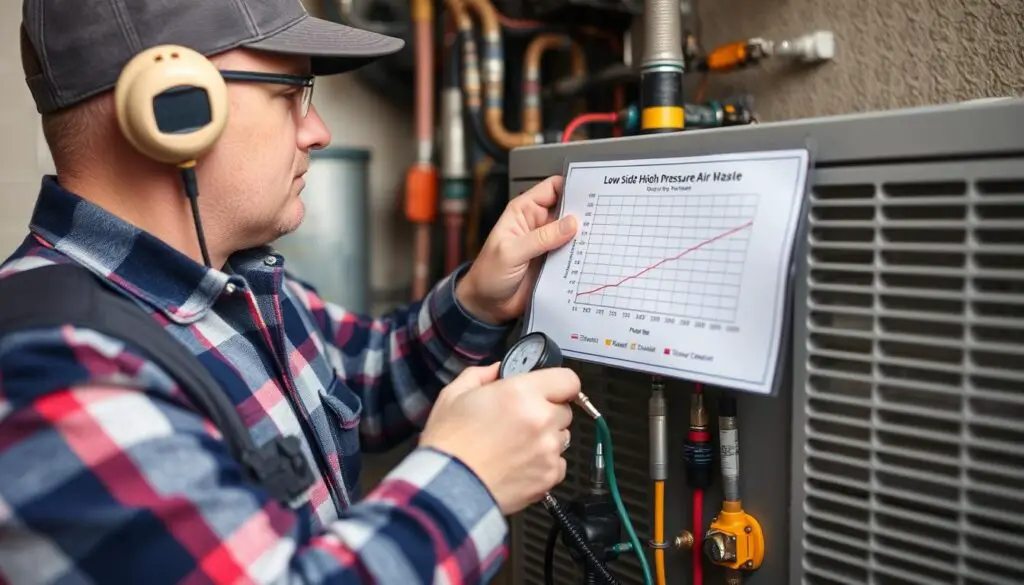

How to Diagnose Low High Side AC Pressure
Proper diagnosis is essential before attempting any repairs. Follow these steps to accurately diagnose low high side pressure issues:
- Gather the right tools: You’ll need a manifold gauge set, thermometer, and pressure-temperature chart for your specific refrigerant.
- Connect the gauges: With the system off, connect the blue hose to the low side service port and the red hose to the high side service port.
- Record ambient temperature: Note the outside temperature, as this affects normal pressure readings.
- Run the system: Turn on the AC system and allow it to run for 10-15 minutes to stabilize.
- Check the readings: Compare your pressure readings to the expected values on the pressure-temperature chart.
- Observe pressure behavior: Note how pressures change when adjusting fan speeds or engine RPM (for automotive systems).
| Symptom | High Side Pressure | Low Side Pressure | Likely Cause |
| Poor cooling, normal airflow | Low | High | Expansion valve stuck open or faulty compressor |
| Poor cooling, weak airflow | Low | Low | Refrigerant leak or blockage |
| Intermittent cooling | Fluctuating | Fluctuating | Failing compressor or moisture in system |
| No cooling | Very low/equal to low side | Equal to high side | Major leak or compressor failure |
Solutions for Low High Side AC Pressure
Once you’ve identified the cause of your low high side pressure, you can implement the appropriate solution:
Addressing Refrigerant Leaks
DIY Approach:
- Use an electronic leak detector or UV dye kit to locate small leaks
- For accessible fittings, tighten connections or replace O-rings
- Apply approved sealant for minor, hard-to-reach leaks
- Recharge the system after repairs (requires proper equipment)
Professional Solution:
- Nitrogen pressure test to locate all leaks
- Component replacement for damaged parts
- Proper system evacuation with a vacuum pump
- Precise refrigerant charging to manufacturer specifications
Cleaning the Condenser
- Turn off power to the system completely.
- Remove debris like leaves and dirt from around the condenser unit.
- Use a soft brush to gently clean the fins, brushing in the direction of the fins to avoid bending them.
- Apply coil cleaner according to product instructions.
- Rinse gently with a hose on low pressure, from inside out if possible.
- Straighten bent fins using a fin comb of the appropriate size.
Safety Tip: Always disconnect power before cleaning the condenser to avoid electrical hazards. For window units, unplug the unit completely.
Compressor Repairs
Compressor issues typically require professional attention due to their complexity:
Repair Options
- Electrical component replacement (clutch, relay, etc.)
- Oil addition if levels are low
- Resealing accessible leaks
- Addressing voltage issues
When Replacement Is Necessary
- Internal mechanical failure
- Seized compressor
- Extensive internal contamination
- When repair costs exceed 50% of replacement
Expansion Valve Replacement
Replacing an expansion valve or orifice tube requires specific tools and knowledge:
- The system must be completely evacuated of refrigerant
- The old valve must be carefully removed without damaging surrounding components
- New O-rings and seals should always be used
- The system must be properly evacuated with a vacuum pump before recharging
- Proper torque specifications must be followed for connections
Need Help With Your AC System?
Expansion valve replacement requires specialized tools and expertise. Get professional assistance for accurate diagnosis and repair.
Preventive Maintenance to Avoid Low High Side Pressure
Regular maintenance can help prevent pressure issues before they develop:
Seasonal Maintenance Tasks
- Clean or replace air filters every 1-3 months
- Clean condenser coils annually before hot weather
- Check refrigerant levels at the start of cooling season
- Inspect all hoses and connections for signs of wear
- Clear debris from around outdoor units
Professional Service Recommendations
- Annual professional inspection and tune-up
- Professional leak detection every 2-3 years
- Electrical component testing
- Compressor performance evaluation
- Condenser and evaporator coil deep cleaning
Regular maintenance is far less expensive than emergency repairs. A well-maintained AC system not only avoids pressure problems but also operates more efficiently, saving energy and extending equipment life.
Frequently Asked Questions
Can I drive my car with low high side AC pressure?
While you can drive your vehicle with an underperforming AC system, continuing to operate it with significant pressure imbalances can lead to compressor damage. If your high side pressure is extremely low, it’s best to have the system checked before extensive use.
Why does my AC blow cold initially then get warm?
This symptom often indicates a refrigerant leak or a cycling issue. As the system runs, pressure may drop below operational thresholds, causing the compressor to disengage. Once pressure rebuilds, the cycle repeats. This pattern can damage your compressor over time and should be addressed promptly.
Is it normal for high side pressure to fluctuate?
Some fluctuation is normal, especially as ambient temperatures change or when the compressor cycles. However, rapid or extreme fluctuations indicate a problem, possibly with the expansion valve, compressor, or the presence of air in the system.
How much does it cost to fix low high side AC pressure?
Repair costs vary widely depending on the cause. Simple fixes like cleaning a condenser might cost 0-200, while compressor replacement can range from 0-1,200 for home systems and 0-1,500 for automotive systems, plus labor. Always get a detailed diagnosis before proceeding with expensive repairs.
Final Thoughts
Low high side AC pressure is a symptom that can stem from various underlying issues in your air conditioning system. By understanding the causes and proper diagnostic approaches, you can make informed decisions about repairs and maintenance. While some maintenance tasks can be performed by homeowners or car enthusiasts with basic tools, many pressure-related issues require professional expertise and specialized equipment.
Regular maintenance remains the best strategy to prevent pressure problems and ensure your AC system operates efficiently for years to come. If you’re experiencing persistent cooling issues, consulting with a certified HVAC technician or automotive AC specialist is the safest approach to resolve the problem correctly the first time.
