Modern vehicles, reliant on All-Wheel Drive (AWD) systems, seek to enhance performance, stability, and control. Yet, these systems, being complex, can malfunction, resulting in diminished vehicle performance and safety risks.
Grasping the intricacies of AWD system troubleshooting is imperative for the early detection and resolution of malfunctions. This comprehensive guide will elucidate prevalent AWD system issues and offer practical solutions to restore vehicular functionality.
Key Takeaways
- Understanding the basics of AWD system maintenance
- Identifying common symptoms of AWD system failure
- Learning DIY fixes for common AWD issues
- Recognizing when to seek professional help for AWD system repairs
- Tips for maintaining your AWD system’s health
Understanding All-Wheel Drive Systems
The complexity of AWD systems necessitates a deep understanding for effective troubleshooting and performance optimization. The evolution of all-wheel drive technology has introduced diverse configurations, catering to a wide range of driving requirements.
Different Types of AWD Systems
AWD systems are distinguished by their operational and control methodologies.
Full-Time vs. Part-Time AWD
Full-time AWD systems continuously power all four wheels, enhancing traction and stability. In contrast, part-time AWD systems predominantly operate in two-wheel drive mode, engaging the other wheels only when necessary.
Mechanical vs. Electronic AWD
Mechanical AWD systems depend on mechanical components such as differentials and clutches for power distribution. In contrast, electronic AWD systems employ advanced electronic controls and sensors to dynamically allocate torque.
How AWD Systems Work
The functionality of AWD systems is predicated on their capacity to distribute power effectively.
Power Distribution Mechanisms
Power distribution in AWD systems is managed through components like transfer cases and differentials, which allocate torque between the front and rear axles.
Torque Vectoring Explained
Torque vectoring is an advanced technology that not only distributes power between axles but also between individual wheels, enhancing cornering performance and stability.
Benefits and Limitations of AWD
AWD systems offer numerous benefits, including improved traction, enhanced stability, and better handling in adverse conditions. They also have limitations, such as increased complexity, weight, and potential fuel efficiency impacts.
Understanding the different types of AWD systems and their operational mechanisms enables vehicle owners to appreciate the technology more fully. This understanding facilitates more effective vehicle maintenance.

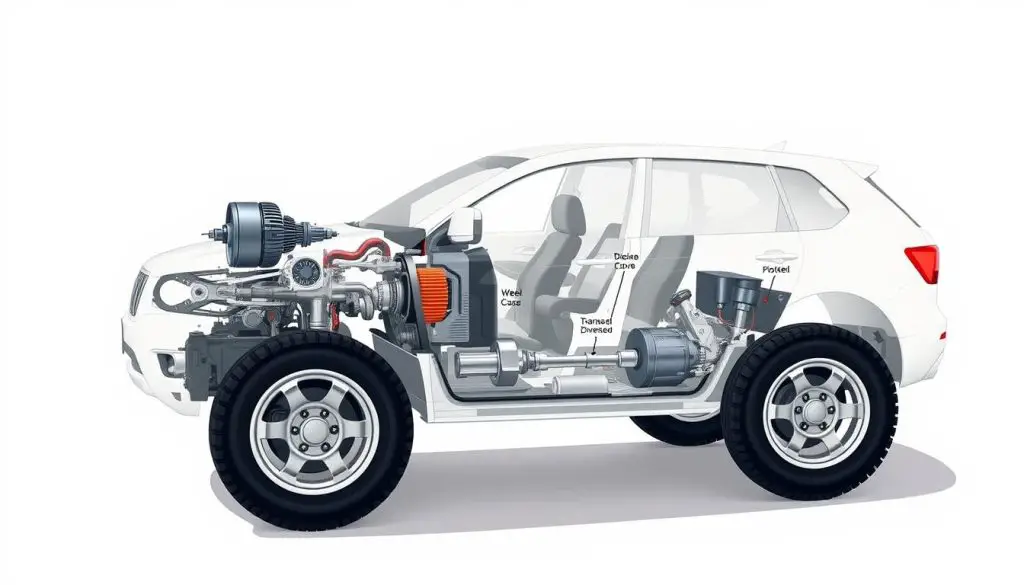

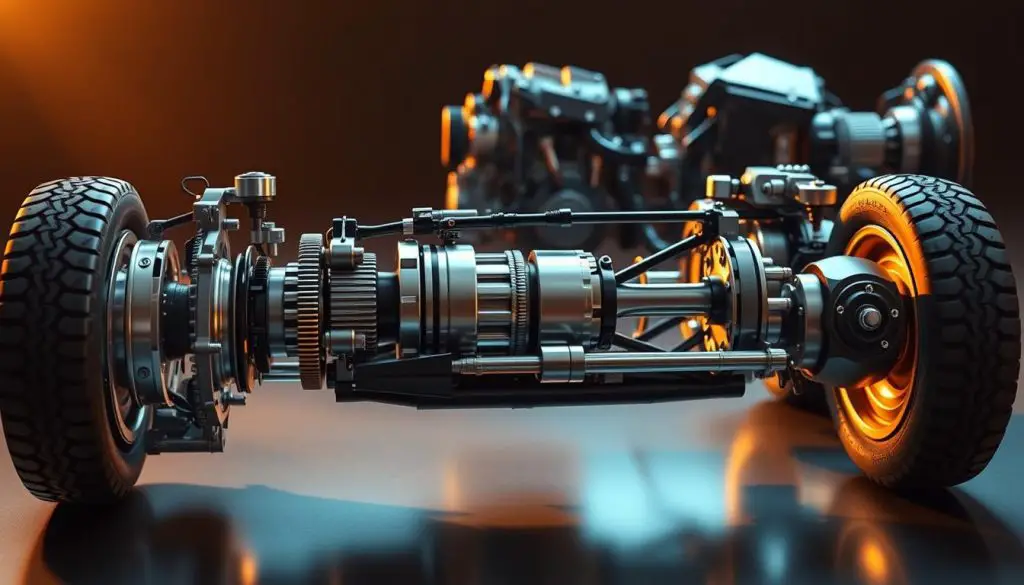

Key Components of AWD Systems
AWD systems are comprised of several key components, each playing a vital role in the overall functionality of the vehicle. Understanding these components is essential for diagnosing and repairing issues within the AWD system.
Transfer Case
The transfer case is a critical component that distributes power between the front and rear axles. It’s typically found in four-wheel-drive (4WD) and AWD vehicles, enabling them to switch between two-wheel drive and 4WD modes. The transfer case is controlled either manually or electronically, depending on the vehicle’s design.
Front and Rear Differentials
Differentials are crucial for allowing the wheels on an axle to rotate at different speeds, which is necessary for navigating turns. In AWD systems, both front and rear differentials work in tandem with the transfer case or center differential to distribute power appropriately.
Center Differential/Coupling
The center differential or coupling is another vital component that splits power between the front and rear axles. It allows for speed differences between the axles, improving traction and reducing the strain on the drivetrain.
Driveshafts and CV Joints
Driveshafts transmit power from the transmission to the differentials, while CV joints allow for the smooth transfer of power at varying angles. Both are essential for the smooth operation of AWD systems.
Electronic Control Units
Electronic Control Units (ECUs) play a pivotal role in modern AWD systems, controlling the distribution of power and monitoring system performance. They work in conjunction with various sensors to optimize traction and stability.
The key components of AWD systems work together to provide enhanced performance, traction, and control. Understanding these components is crucial for maintaining and repairing AWD vehicles.
Signs Your AWD System Needs Attention
Early detection of potential AWD system issues can avert expensive repairs. The all-wheel drive system, integral to vehicle performance and safety, necessitates prompt attention to signs of malfunction. Recognizing these indicators is crucial for preserving your vehicle’s integrity.
Dashboard Warning Lights
Dashboard warning lights serve as immediate indicators of AWD system malfunctions. These lights are designed to alert drivers to problems requiring immediate attention.
AWD-Specific Warning Indicators
Modern vehicles often feature AWD-specific warning lights. These lights signal issues such as sensor malfunctions, transfer case problems, or faults in the electronic control unit. For instance, an “AWD Lock” light may indicate a locked mode, while an “AWD Malfunction” light signals a more critical issue.
Related Warning Lights
Other dashboard warnings may be related to AWD system issues. For example, a “Traction Control” or “Stability Control” light could indicate a problem affecting AWD system operation. It is imperative to consult your vehicle’s manual to decipher these lights’ meanings.
Unusual Noises During Operation
Unusual noises during vehicle operation can signal AWD system problems. These noises, ranging from grinding and whining to clicking, may indicate various system malfunctions.
Grinding, Whining, and Clicking Sounds
- Grinding noises suggest worn or damaged components, such as the transfer case or differentials.
- Whining noises may indicate bearing failures or driveshaft issues.
- Clicking sounds could be related to CV joint or other moving part problems within the AWD system.
Performance Issues and Handling Problems
AWD system malfunctions can manifest as performance issues or handling problems. If your vehicle does not respond as expected, it may indicate an underlying issue.
| Symptom | Possible Cause |
|---|---|
| Loss of traction | Faulty sensor or malfunctioning electronic control unit |
| Uneven power distribution | Transfer case or differential issues |
| Unusual vibrations | Driveshaft or CV joint problems |
Vibrations and Shuddering
Vibrations or shuddering while driving can signal AWD system problems. These sensations may stem from imbalanced driveshafts, worn-out CV joints, or malfunctioning wheel bearings.
Being vigilant about these signs and addressing them promptly can prevent more severe AWD system problems. Regular maintenance and inspections are essential to ensure your vehicle’s AWD system operates effectively and safely.
Service All-Wheel Drive System: Meaning, Causes, and Fixes
The appearance of a “Service AWD” notification may seem enigmatic, yet it serves as a critical indicator of the all-wheel drive system’s condition. This alert transcends the realm of mere notification, signaling that the AWD system necessitates attention due to potential malfunctions that could compromise its functionality and your safety on the road.
Decoding the “Service AWD” Warning
The “Service AWD” warning, a general alert, signifies a problem within the all-wheel drive system. It is imperative to recognize that this warning does not constitute a definitive diagnosis but rather a notification of an anomaly. The causes can span from minor inconveniences to more critical issues demanding immediate resolution.
Common Triggers for AWD Warnings
Several factors can precipitate the “Service AWD” warning. Grasping these triggers is essential for diagnosing and rectifying the issue.
Sensor Failures
Sensor failures are a prevalent cause of AWD warnings. Contemporary AWD systems depend on a network of sensors to monitor and adjust the power distribution between wheels. A sensor failure can transmit erroneous data to the system’s control unit, prompting the warning.
Mechanical Problems
Mechanical malfunctions, such as worn or damaged components within the AWD system, can also precipitate the warning. These issues can result in diminished performance and, if neglected, can escalate into more severe damage.
Electronic Control Issues
Electronic control malfunctions, encompassing problems with the system’s control module or wiring, can disrupt the AWD system’s operation. These complexities often necessitate specialized diagnostic equipment for identification and rectification.
Initial Diagnostic Steps
Confronted with a “Service AWD” warning, the initial step is to consult the vehicle’s owner’s manual. Many contemporary vehicles possess onboard diagnostics that can furnish more detailed information regarding the issue. If the problem persists, seeking professional diagnostic services is advisable.
Resetting the AWD System
In certain instances, resetting the AWD system may alleviate the issue. This can typically be achieved by restarting the vehicle or, in some models, by executing a specific sequence of actions as detailed in the owner’s manual. Notwithstanding, if the warning persists, further investigation is imperative to avert potential damage to the AWD system.
Understanding and addressing the “Service AWD” warning expeditiously is crucial for preserving your vehicle’s performance and safety. By deciphering the warning, identifying common triggers, and undertaking initial diagnostic measures, you can ensure the AWD system operates optimally.
Essential Tools for DIY AWD Troubleshooting
Engaging in DIY AWD system troubleshooting necessitates the utilization of a distinct array of tools for precise diagnosis and rectification of malfunctions. The acquisition of appropriate equipment not only streamlines the troubleshooting process but also guarantees accurate identification of issues, obviating the need for speculative endeavors.
Basic Diagnostic Equipment
The initiation of AWD system diagnostics necessitates the employment of fundamental diagnostic apparatus. These comprise:
OBD-II Scanners
An OBD-II scanner emerges as indispensable for deciphering trouble codes pertinent to the AWD system. Contemporary OBD-II scanners offer comprehensive insights into the vehicle’s systems, facilitating the precise identification of anomalies.
Multimeters
A multimeter serves as a vital tool for the measurement of electrical voltage, current, and resistance. Its application is imperative for the diagnosis of electrical malfunctions within the AWD system, encompassing faulty sensors and wiring anomalies.
Specialized AWD Testing Tools
In addition to basic diagnostic tools, specialized equipment tailored for AWD systems is requisite. This category includes:
- AWD system-specific diagnostic software
- Transfer case and differential testing tools
Safety Equipment
Ensuring safety is paramount when engaging in vehicle maintenance. Essential safety apparatus encompasses:
- Protective gloves and eyewear
- Jack stands and wheel chocks for safe lifting
| Tool | Purpose |
|---|---|
| OBD-II Scanner | Read trouble codes, diagnose AWD system issues |
| Multimeter | Measure electrical voltage, current, and resistance |
| AWD Diagnostic Software | Detailed analysis of AWD system performance |
Common AWD System Issues and Their Solutions
AWD system malfunctions can manifest in various ways, from minor annoyances to significant safety hazards. Understanding these issues is crucial for maintaining the performance and safety of your vehicle.
Transfer Case Problems
The transfer case is a critical component of the AWD system, responsible for distributing power between the front and rear axles. Issues with the transfer case can lead to significant problems.
Fluid Leaks and Replacements
One common issue with the transfer case is fluid leaks. Regular inspection can help identify leaks early. If a leak is detected, replacing the seal or gasket as needed can prevent further damage. It’s also important to check the fluid level regularly and top it off as necessary.
Chain and Gear Failures
Chain and gear failures within the transfer case can cause significant damage. Wear and tear over time can lead to these failures. Regular maintenance, including fluid changes, can help prolong the life of these components. In cases of failure, replacement of the damaged parts is necessary.
Differential Failures
Differentials are another critical component of the AWD system, allowing for smooth power distribution to the wheels. Failures in the differential can lead to decreased performance and potentially cause safety issues.
Bearing Wear
Bearing wear within the differential can cause unusual noises and vibrations. Regular inspection can help identify worn bearings before they cause significant damage. Replacement of worn bearings is necessary to maintain smooth operation.
Gear Damage
Gear damage within the differential can also occur, often due to wear or lack of lubrication. Proper maintenance, including regular fluid checks and changes, can help prevent gear damage. In cases of damage, repair or replacement of the affected gears may be necessary.
Sensor Malfunctions
Modern AWD systems rely on various sensors to monitor and adjust power distribution. Malfunctions in these sensors can lead to improper system operation.
Wheel Speed Sensors
Wheel speed sensors monitor the speed of each wheel, providing critical data to the AWD system. Faulty wheel speed sensors can cause the system to malfunction, leading to decreased performance and potentially unsafe conditions. Replacement of faulty sensors is necessary.
Temperature Sensors
Temperature sensors monitor the temperature of various components within the AWD system. Malfunctioning temperature sensors can cause the system to operate incorrectly, potentially leading to overheating or other issues. Accurate diagnosis and replacement of faulty sensors are crucial.
Clutch Pack Issues
Clutch packs are used in some AWD systems to manage power distribution. Issues with the clutch pack can lead to decreased system performance.
Clutch pack failure can occur due to wear or improper maintenance. Regular inspection and maintenance can help identify potential issues before they become significant problems.
Electronic Control Module Problems
The Electronic Control Module (ECM) is the brain of the AWD system, controlling power distribution based on various inputs. Issues with the ECM can lead to significant system malfunctions.
ECM problems can range from software issues to hardware failures. Proper diagnosis using specialized equipment is necessary to identify and rectify ECM problems. In some cases, reprogramming or replacement of the ECM may be required.
Step-by-Step AWD System Diagnosis
Diagnosing AWD system malfunctions necessitates a multifaceted approach, encompassing visual inspections, fluid assessments, and electronic diagnostics. This methodical strategy facilitates the identification of underlying problems with precision.
Visual Inspection Procedures
The initial phase in diagnosing AWD system malfunctions involves a comprehensive visual examination. This entails scrutinizing for leaks and inspecting driveline components.
Checking for Leaks
Inspect the transfer case and differentials for any signs of leakage. Fluid leaks can precipitate severe damage if not promptly addressed.
Examining Driveline Components
Examine the driveshafts, CV joints, and other driveline components for wear or damage. Any deteriorated parts necessitate replacement to avert further complications.
Fluid Level and Condition Checks
Fluid level and condition assessments are paramount for AWD system functionality. This entails inspecting the transfer case fluid and differential fluid.
Transfer Case Fluid
Verify that the transfer case fluid level is at the recommended level. Also, assess the fluid’s condition; it should be devoid of contaminants and metal particles.
Differential Fluid
Conduct a similar assessment of the differential fluid level and condition. The fluid should be at the recommended level and possess the correct viscosity.
| Component | Fluid Type | Recommended Level |
|---|---|---|
| Transfer Case | Synthetic Fluid | Full |
| Front Differential | Synthetic Gear Oil | Full |
| Rear Differential | Synthetic Gear Oil | Full |
Electronic Diagnostics
Electronic diagnostics are indispensable in modern AWD system diagnosis. This entails deciphering error codes and testing sensors.
Reading Error Codes
Utilize an OBD-II scanner to decipher any error codes stored in the vehicle’s onboard computer. These codes offer invaluable insights into the problem.
Testing Sensors
Test the sensors pertinent to the AWD system, such as wheel speed sensors and transfer case sensors, to ascertain their correct functioning.
Test Drive Evaluation
A test drive is imperative to evaluate the AWD system’s performance under real-world conditions. Pay attention to any unusual noises, vibrations, or performance anomalies.
By adhering to these steps, you can effectively diagnose and rectify issues with your vehicle’s AWD system, ensuring optimal performance and safety.
Preventative Maintenance for AWD Systems
Preventative maintenance is indispensable for prolonging the lifespan of AWD systems and averting exorbitant repair costs. Adherence to a meticulous maintenance regimen ensures the AWD system’s optimal functionality and performance.
Recommended Maintenance Schedule
AWD systems necessitate periodic inspections and maintenance activities, as stipulated in the vehicle’s owner’s manual. Strict adherence to this schedule is paramount for preserving system integrity.
Fluid Change Procedures
The act of fluid substitution, encompassing transfer case and differential fluids, stands as a pivotal maintenance duty. The utilization of the appropriate fluid type and quantity is imperative for the enduring functionality of the AWD system.
Component Inspections
Consistent evaluations of AWD components, including driveshafts, CV joints, and differentials, facilitate the early detection of potential malfunctions, thus averting significant issues.
Tire Maintenance for AWD Vehicles
Proper tire care is paramount for AWD vehicles. This encompasses routine tire rotations and the verification of uniform tire sizes and wear patterns.
Rotation Patterns
Adherence to the prescribed tire rotation pattern ensures even wear distribution across all four tires, a critical factor for maintaining AWD system balance and efficiency.
Matching Tire Sizes and Wear
It is imperative that all tires are of identical size and exhibit comparable wear patterns for the seamless operation of AWD systems. Incongruities in tire specifications can precipitate system malfunctions and diminished performance.
Through diligent adherence to these preventative maintenance protocols, vehicle proprietors can substantially prolong their AWD system’s lifespan, enhance vehicle performance, and mitigate the likelihood of exorbitant repair expenditures.
Conclusion
The maintenance of an all-wheel drive (AWD) system is paramount for the longevity and performance of your vehicle. Recognizing early signs of potential issues and adhering to regular maintenance protocols can prevent costly repairs. This ensures a seamless driving experience.
A detailed AWD system troubleshooting summary necessitates an examination of the transfer case, differentials, and driveshafts. It also involves monitoring the electronic control unit. Adherence to the recommended maintenance schedule, fluid level checks, and component inspections for wear are essential.
Through the application of the insights provided in this article, you can adeptly troubleshoot and maintain your AWD system. This ensures your vehicle’s optimal condition. Regular maintenance not only boosts performance but also significantly enhances safety during driving.
FAQ
What are the common signs that my all-wheel drive (AWD) system needs attention?
Indicators of AWD system malfunction include dashboard warning lights, unusual noises during operation, and performance issues. Handling problems, vibrations, and shuddering are also common signs.
How do I decode the “Service AWD” warning on my dashboard?
The “Service AWD” warning may be triggered by sensor failures, mechanical problems, or electronic control issues. Initial diagnostic steps involve checking error codes and testing sensors.
What are the essential tools needed for DIY AWD troubleshooting?
Essential tools for DIY AWD troubleshooting include basic diagnostic equipment such as OBD-II scanners and multimeters. Specialized AWD testing tools and necessary safety equipment are also required.
How often should I perform preventative maintenance on my AWD system?
Adhere to the recommended maintenance schedule for your vehicle. This typically includes regular fluid changes, component inspections, and proper tire maintenance.
What are the benefits of torque vectoring in AWD systems?
Torque vectoring enhances handling and stability by distributing power unevenly to the wheels. This improves traction and reduces understeer.
Can I reset the AWD system myself, or do I need professional help?
Resetting the AWD system may be possible using an OBD-II scanner. Yet, it’s advisable to consult a professional mechanic if you’re uncertain about the process.
How do I diagnose AWD system issues using a step-by-step approach?
Begin with a visual inspection and check fluid levels and conditions. Perform electronic diagnostics and conclude with a test drive evaluation. This step-by-step approach efficiently identifies the root cause of problems.
What are the common issues that arise in AWD systems, and how can I fix them?
Common issues include transfer case problems, differential failures, and sensor malfunctions. Clutch pack issues and electronic control module problems also occur. Solutions depend on the specific issue, often requiring repairs or replacements.
