Every time you drive your car, you’re experiencing more than just transportation. You’re immersed in a carefully engineered sensory experience shaped by NVH – Noise, Vibration, and Harshness. This critical aspect of automotive design significantly impacts your comfort, perception of quality, and overall driving satisfaction. Whether it’s the gentle hum of a luxury sedan or the pronounced rumble of a sports car, these sensations aren’t accidental – they’re meticulously crafted through NVH engineering.
In this comprehensive guide, we’ll explore what NVH in vehicles truly means, why it matters to everyday drivers, and how automotive engineers work to perfect this crucial aspect of vehicle performance. Understanding NVH can help you make better vehicle purchasing decisions and appreciate the complex engineering behind your driving experience.
Understanding NVH: The Basics
NVH stands for Noise, Vibration, and Harshness – three distinct but interconnected elements that define how a vehicle sounds and feels during operation. While these phenomena might seem purely subjective, automotive engineers use sophisticated tools and metrics to quantify and optimize them.
The science of NVH emerged as vehicles became more refined and consumer expectations evolved. What was once considered acceptable vehicle noise and vibration in early automobiles would be completely unacceptable in today’s market. Modern drivers expect vehicles that are quiet, smooth, and refined – making NVH a critical differentiator between economy and luxury vehicles.
Why NVH Matters
NVH isn’t just about comfort – it fundamentally shapes our perception of vehicle quality and safety. A vehicle with poor NVH characteristics often feels cheaply made or potentially unsafe, even if its mechanical components are perfectly sound. Conversely, excellent NVH tuning can make even an economy car feel more premium and substantial.
For manufacturers, NVH represents a significant engineering challenge that affects everything from material selection to structural design. It’s also a major factor in brand identity – the distinctive sound of a Porsche engine or the whisper-quiet cabin of a Lexus are carefully crafted NVH signatures.
The NVH Triangle
Engineers often refer to the “NVH triangle” – the delicate balance between noise, vibration, and harshness. Improvements in one area can sometimes worsen another. For example, stiffening a vehicle’s suspension might reduce certain vibrations but could increase harshness over bumps. This interconnectedness makes NVH engineering particularly complex.
Understanding this balance helps explain why different vehicle types have different NVH profiles. Sports cars often accept more noise and vibration in exchange for performance, while luxury vehicles prioritize isolation from all three NVH elements.
The Noise Component of NVH
Noise is perhaps the most immediately noticeable aspect of NVH. It encompasses all the audible sounds a vehicle produces during operation. These sounds range from the low rumble of an engine to the high-pitched whine of wind passing over mirrors. Understanding vehicle noise requires examining both its sources and how we measure it.

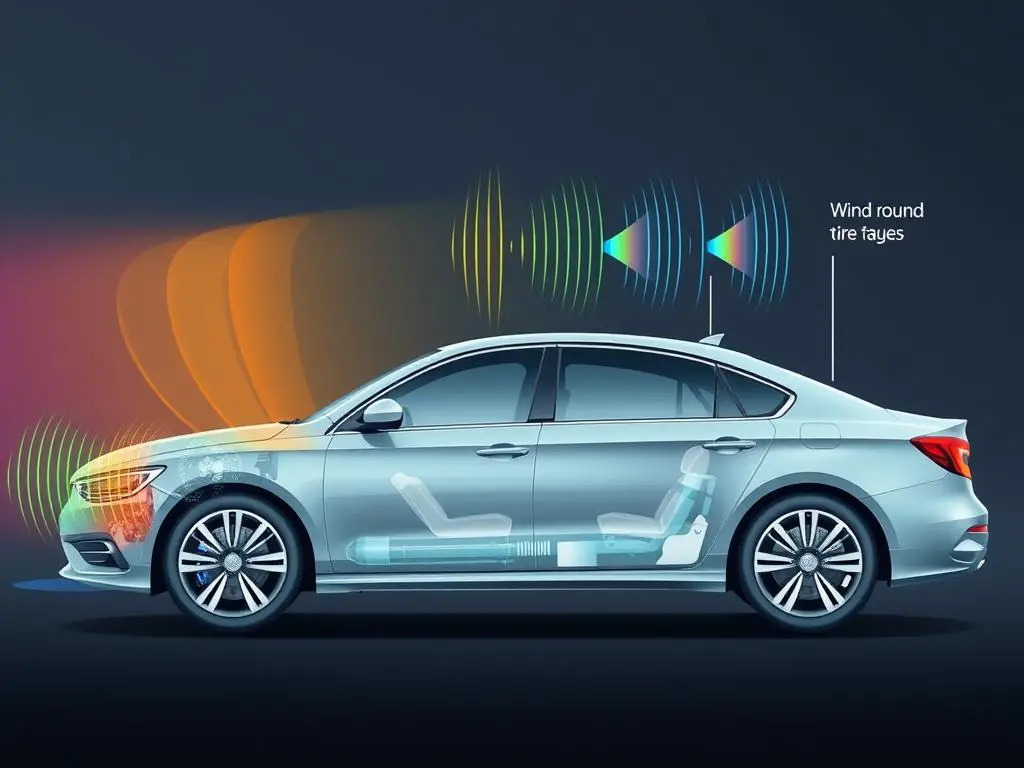

Primary Sources of Vehicle Noise
Powertrain Noise
The engine, transmission, and exhaust system generate significant noise during operation. This includes combustion sounds, mechanical movements, and the distinctive exhaust note. Powertrain noise changes with engine speed and load, creating a dynamic sound profile.
Road and Tire Noise
The interaction between tires and road surfaces creates noise that increases with speed. Different road textures produce distinct sound signatures, from the smooth hum of fresh asphalt to the coarse roar of concrete. Tire design significantly impacts this noise source.
Wind and Aerodynamic Noise
As a vehicle moves through air, turbulence creates noise, particularly around mirrors, pillars, and other protrusions. This aerodynamic noise becomes the dominant sound source at highway speeds, often exceeding powertrain noise.
Measuring and Evaluating Noise
Automotive engineers measure noise using sophisticated microphone arrays that capture sound pressure levels in decibels (dB). However, raw decibel measurements don’t tell the whole story. The human ear perceives different frequencies with varying sensitivity, so A-weighted decibels (dBA) are used to better reflect human hearing.
Beyond simple volume measurements, engineers analyze the frequency spectrum and temporal characteristics of vehicle noise. Some sounds might be objectively quiet but subjectively annoying due to their frequency or pattern. This is why psychoacoustic metrics that consider human perception are increasingly important in NVH analysis.
| Noise Type | Typical Range (dBA) | Frequency Range | Perception |
| Engine Idle | 35-45 | 50-500 Hz | Low rumble, vibration |
| Tire Noise (60 mph) | 65-75 | 500-2000 Hz | Constant hum |
| Wind Noise (70 mph) | 70-80 | 1000-5000 Hz | Rushing, whistling |
| Full Acceleration | 75-85 | 100-4000 Hz | Powerful, intense |
The Vibration Component of NVH
Vibration refers to the oscillatory movements felt throughout the vehicle structure. Unlike noise, which is perceived through hearing, vibration is primarily experienced through touch – felt through the steering wheel, seats, floor, and other contact points. Vibration significantly impacts comfort and can contribute to driver fatigue on longer journeys.

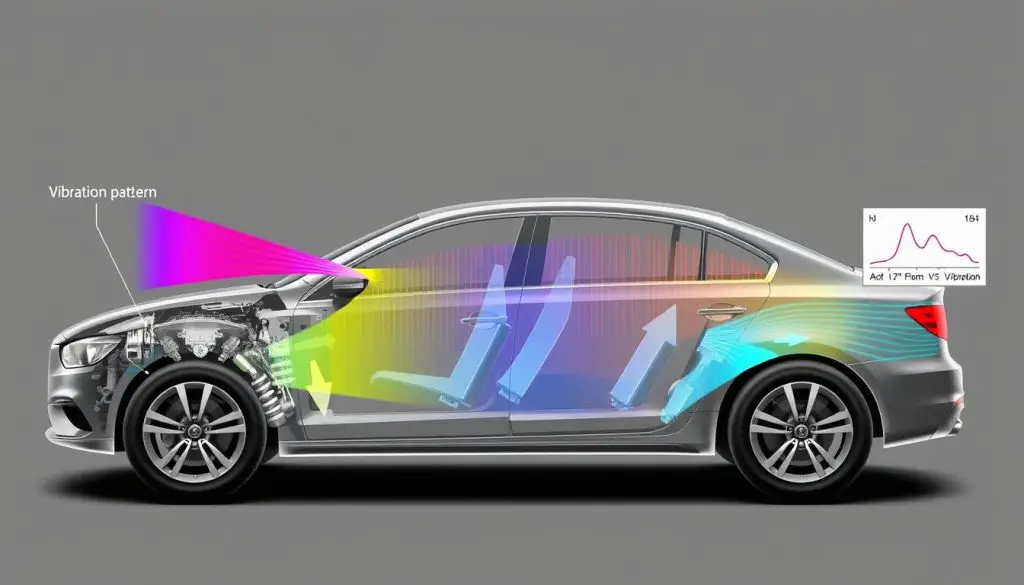

Types and Sources of Vehicle Vibration
Low-Frequency Vibrations (0-20 Hz)
These slower oscillations are often related to suspension movement, body flex, and engine idle characteristics. They create the sensation of the vehicle “rocking” or swaying. Examples include the gentle rocking at idle or the bouncing sensation after hitting a bump.
Primary sources include:
- Engine imbalance and firing pulses
- Suspension response to road irregularities
- Drivetrain components (especially during acceleration)
High-Frequency Vibrations (20-100 Hz)
These faster vibrations often manifest as buzzing or trembling sensations. They’re typically less visible to the eye but clearly felt through touch. High-frequency vibrations can be particularly fatiguing over time and often indicate mechanical issues.
Common sources include:
- Wheel imbalance or alignment issues
- Brake system resonance (especially during braking)
- Powertrain harmonics at specific RPM ranges
Measuring and Analyzing Vibration
Engineers use accelerometers attached to various vehicle components to measure vibration amplitude, frequency, and direction. These measurements are typically expressed in terms of acceleration (m/s²) or velocity (mm/s). Modern vehicles might have dozens of accelerometers during development testing to create a comprehensive vibration map.
Vibration analysis often involves identifying resonance points – specific frequencies at which components naturally amplify vibrations. Engineers work to ensure these resonances don’t align with common operating conditions. For example, engine mounts are tuned to prevent engine vibrations from matching the natural frequency of the vehicle body.

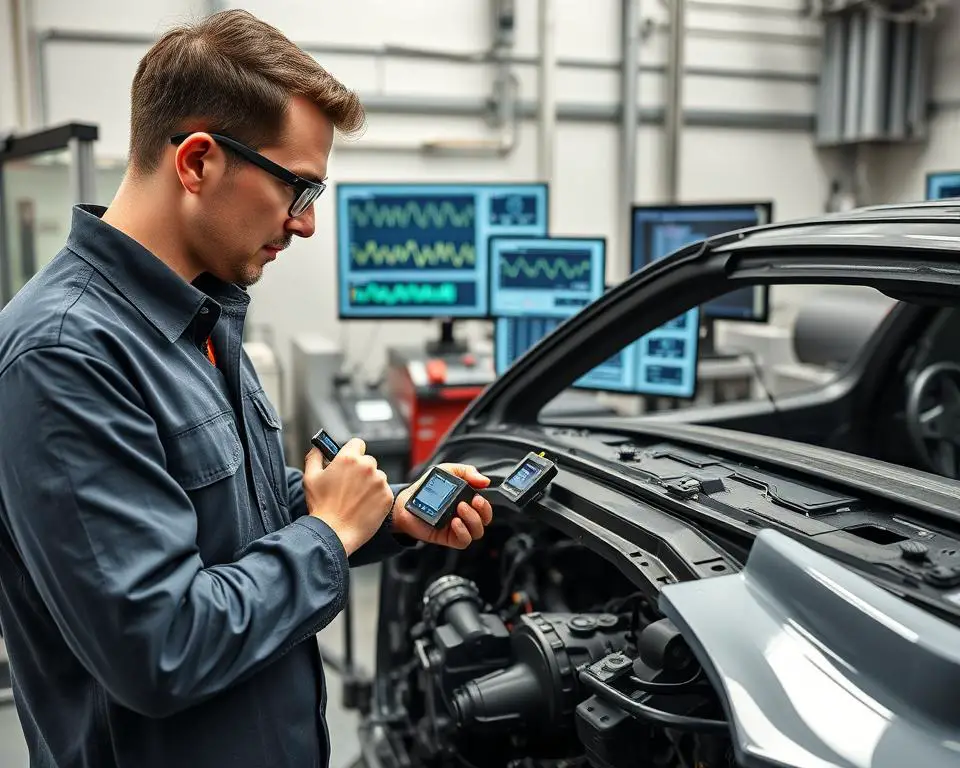

Figure 2: NVH engineer using accelerometers to measure and analyze vehicle vibration patterns
The Harshness Component of NVH
Harshness is the most subjective component of NVH, referring to the perceived quality or character of both noise and vibration, particularly in response to sudden inputs like bumps or potholes. While noise can be measured in decibels and vibration in acceleration, harshness requires more nuanced evaluation that considers human perception.
Understanding Harshness in Vehicles
Harshness manifests as the “sharpness” or “abruptness” of a vehicle’s response to road imperfections. A harsh-riding vehicle might produce a loud “thwack” sound accompanied by a sharp jolt when crossing a road joint, while a vehicle with well-tuned harshness characteristics would absorb the same imperfection with a muted thump and gentle movement.
Harshness is closely tied to the transient response of vehicle systems – how quickly forces build up and dissipate. This is why suspension damping is crucial for harshness control, as it determines how rapidly the vehicle absorbs and dissipates energy from impacts.
Evaluating Harshness
Because harshness is subjective, automotive engineers use a combination of objective measurements and subjective evaluations:
Objective Measurements
- Impact force transmission rates
- Frequency analysis of impact responses
- Jerk measurements (rate of change of acceleration)
- Sound pressure level rise times
Subjective Evaluations
- Expert evaluator ratings on standardized courses
- Customer clinics with target demographic groups
- Comparative assessments against benchmark vehicles
- Psychoacoustic analysis of sound quality
The challenge with harshness is that improvements often require trade-offs. For example, softening suspension components might reduce harshness but could worsen handling precision. Finding the right balance depends on the vehicle’s intended character and target market.
Measuring and Analyzing NVH in Vehicles

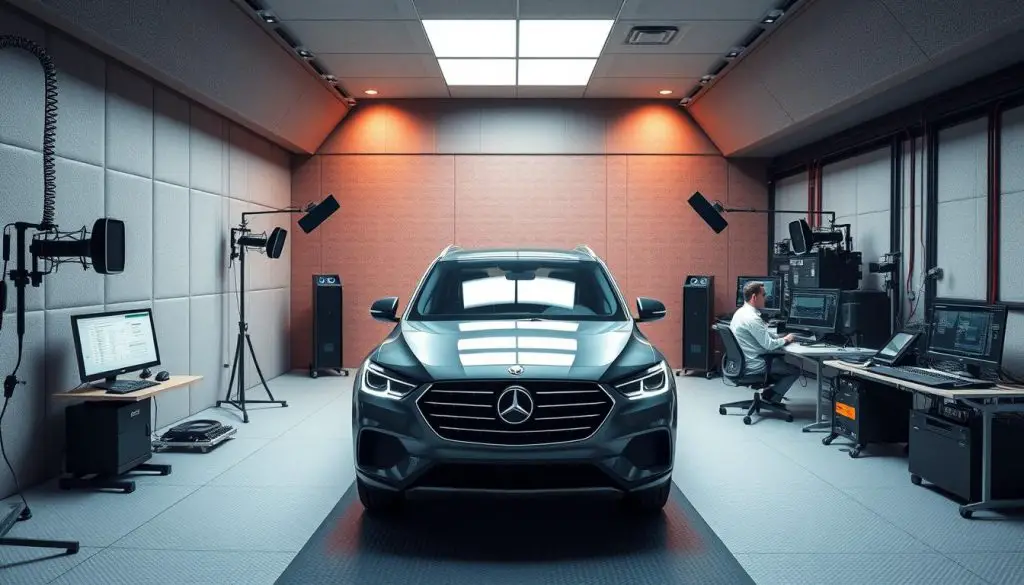

Figure 3: Modern NVH testing facility with semi-anechoic chamber for precise measurements
The science of NVH relies on sophisticated measurement tools and analysis techniques. Modern automotive development employs a range of specialized equipment to quantify and evaluate NVH characteristics throughout the design process.
Essential NVH Measurement Tools
Microphone Arrays
Specialized microphones capture sound pressure levels inside and outside the vehicle. Binaural recording systems that mimic human ears provide more accurate representations of how passengers perceive sound. These recordings allow engineers to analyze both objective sound levels and subjective sound quality.
Accelerometers
These sensors measure vibration at specific points throughout the vehicle structure. Modern accelerometers are small enough to be placed almost anywhere without significantly affecting the system being measured. Multiple accelerometers used simultaneously create a comprehensive vibration map of the entire vehicle.
Laser Vibrometry
This non-contact measurement technique uses laser beams to detect surface vibrations without physically touching the component. It’s particularly useful for measuring vibration patterns across entire panels or structures, creating detailed vibration “heat maps” that reveal problem areas.
Analysis Techniques and Standards
Raw measurement data must be processed and analyzed to yield meaningful insights. Key analysis techniques include:
- Frequency Analysis: Breaking down complex sounds and vibrations into their component frequencies using Fast Fourier Transform (FFT) techniques
- Order Analysis: Tracking specific frequency components that are proportional to engine speed or other rotating components
- Transfer Path Analysis (TPA): Identifying how vibration and noise travel through the vehicle structure from source to occupant
- Modal Analysis: Determining the natural vibration modes and resonant frequencies of vehicle components
The automotive industry follows several standards for NVH testing, including:
- ISO 5128: Measurement of noise inside motor vehicles
- ISO 362: Measurement of exterior noise during acceleration
- SAE J1477: Measurement of interior sound levels during steady-state operation
Figure 4: Frequency analysis and order tracking used to identify specific NVH issues
NVH Reduction Techniques in Modern Vehicles
Automotive engineers employ a wide range of techniques to control NVH in modern vehicles. These approaches can be broadly categorized into passive and active methods, each with specific applications and benefits.
Passive NVH Control Methods
Sound Insulation
Various materials are strategically placed throughout the vehicle to block or absorb sound. These include:
- Mass-loaded vinyl barriers in floors and firewalls
- Acoustic foam in cavities and behind panels
- Multi-layer damping materials on body panels
- Acoustic laminated glass for windows
Vibration Isolation
Components that generate vibration are isolated from the vehicle structure using:
- Hydraulic engine mounts that change stiffness based on conditions
- Subframes with rubber bushings to isolate drivetrain components
- Tuned mass dampers that counteract specific vibration frequencies
- Suspension bushings designed to filter out road vibrations
Structural Design
The vehicle’s structure itself is engineered to minimize NVH:
- High-stiffness body structures that resist flexing and vibration
- Strategic reinforcements at connection points
- Aerodynamic shapes that minimize wind turbulence
- Decoupling of panels to prevent vibration transfer
Active NVH Control Systems
Modern vehicles increasingly employ active systems that dynamically respond to NVH issues:
Active Noise Cancellation
Similar to noise-canceling headphones, these systems use microphones to detect unwanted sounds and speakers to produce opposing sound waves that cancel them out. They’re particularly effective against low-frequency drone noises like those from engines or tires on certain road surfaces.
Figure 5: Active noise cancellation system components and operation
Active Engine Mounts
These electronically controlled mounts adjust their stiffness based on engine conditions. They can be soft to isolate vibration during idle and cruising, but firm up during acceleration to prevent excessive engine movement. Some systems even produce counter-forces to actively cancel specific vibrations.
Figure 6: Active engine mount technology with variable damping characteristics
Material Innovation
Advanced materials play a crucial role in modern NVH solutions:
- Viscoelastic Polymers: Materials that combine viscous and elastic properties to efficiently absorb vibration energy
- Acoustic Metamaterials: Engineered structures that can block specific sound frequencies while remaining lightweight
- Micro-perforated Absorbers: Thin materials with precisely sized holes that effectively absorb sound without the bulk of traditional foams
- Spray-on Damping Compounds: Applied to hidden surfaces to add mass and damping without changing visible components
Future Trends in Vehicle NVH

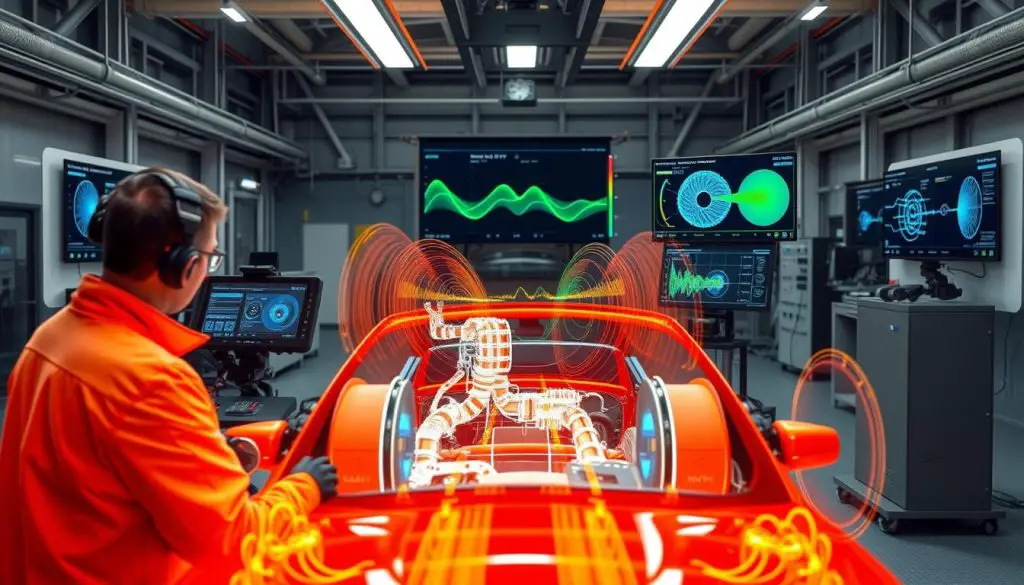

Figure 7: Electric vehicle NVH testing presents new challenges and opportunities
The automotive industry is undergoing significant transformation, and NVH engineering is evolving alongside it. Several key trends are shaping the future of vehicle NVH:
Electric Vehicle NVH Challenges
The transition to electric powertrains is fundamentally changing the NVH landscape. Without the masking effect of combustion engine noise, previously secondary sounds become more noticeable:
- High-frequency electric motor whine requires new damping approaches
- Wind and road noise become more prominent without engine sound
- HVAC and accessory sounds are more noticeable in the quieter cabin
- New components like power electronics introduce unique noise signatures
Electric vehicles also create opportunities for NVH engineers to design sound profiles from scratch, rather than merely reducing unwanted noise. Some manufacturers are adding artificial sound to EVs, both for pedestrian safety and to create a distinctive brand character.
AI-Driven NVH Optimization
Artificial intelligence and machine learning are revolutionizing NVH development:
Predictive Modeling
AI systems can predict NVH characteristics earlier in the design process, reducing the need for physical prototypes. These models learn from vast databases of previous vehicle measurements to make increasingly accurate predictions about how design changes will affect NVH performance.
Adaptive Systems
AI-powered active NVH systems can learn driver preferences and road conditions to optimize the acoustic experience in real-time. These systems might emphasize engine sound during spirited driving but maximize quietness during commuting, all while adapting to changing road surfaces.
Personalized Acoustic Experiences
Future vehicles will likely offer customizable sound environments:
- Driver-selectable sound profiles that change the vehicle’s acoustic character
- Zone-based sound management for different passenger preferences
- Integration with infotainment systems for holistic audio experiences
- Augmented engine sounds that enhance the emotional connection to driving
Figure 8: Concept of personalized acoustic zones for individual passenger experiences
Practical Implications for Vehicle Owners
Understanding NVH has practical benefits for vehicle owners beyond technical interest. This knowledge can help you make informed decisions about vehicle purchases, maintenance, and modifications.
What NVH Tells You About Vehicle Quality
NVH characteristics often reveal much about a vehicle’s overall quality and condition:
During Test Drives
- Pay attention to noise levels during acceleration, cruising, and over rough surfaces
- Feel for vibrations through the steering wheel, seats, and floor
- Notice how the vehicle responds to bumps and potholes
- Compare similar vehicles under identical conditions to spot differences
For Existing Vehicles
- New or changing NVH characteristics often indicate developing mechanical issues
- Vibrations that occur at specific speeds may indicate wheel balance problems
- Knocking or clunking over bumps could suggest worn suspension components
- Increasing road noise might indicate tire wear or suspension issues
Aftermarket NVH Improvements
Vehicle owners can improve NVH characteristics through various aftermarket solutions:
- Sound Deadening Materials: Applying damping sheets to doors, floors, and trunk areas can significantly reduce noise transmission
- Tire Selection: Choosing tires with noise-optimized tread patterns can reduce road noise
- Suspension Upgrades: Quality replacement bushings and shocks can improve both handling and NVH
- Engine Mounts: Upgraded or replacement mounts can reduce vibration transfer to the cabin
When considering modifications that might affect NVH (like performance exhaust systems or stiffer suspension), be aware of the potential trade-offs between performance and comfort.

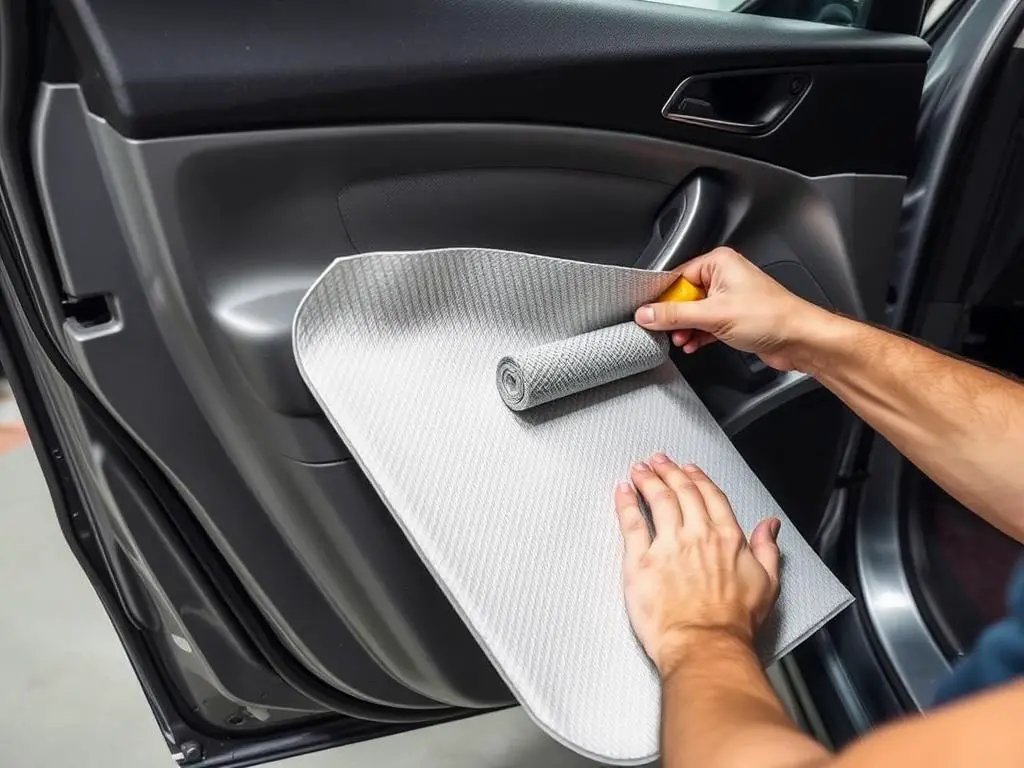

Figure 9: Installation of aftermarket sound deadening material to improve vehicle NVH
Conclusion: The Art and Science of NVH
Figure 10: NVH engineering combines objective measurement with subjective evaluation
NVH in vehicles represents a fascinating intersection of engineering precision and human perception. What began as a simple effort to reduce unwanted noise has evolved into a sophisticated discipline that shapes our entire experience with vehicles.
The science of NVH continues to advance alongside automotive technology, with each generation of vehicles offering improved comfort and refinement. As electric and autonomous vehicles become more prevalent, NVH engineering will face new challenges and opportunities to redefine what makes a vehicle feel premium and pleasant.
For vehicle owners and enthusiasts, understanding NVH provides valuable insight into vehicle quality, maintenance needs, and potential improvements. Whether you’re shopping for a new car, troubleshooting an issue with your current vehicle, or planning modifications, NVH knowledge helps you make more informed decisions.
The next time you drive, take a moment to appreciate the complex engineering behind the sounds and sensations you experience. That quiet cabin, smooth ride, or exhilarating engine note represents thousands of hours of careful development by NVH engineers working to perfect every aspect of your driving experience.
Frequently Asked Questions About NVH
How does NVH affect fuel economy?
NVH and fuel economy are often connected through aerodynamics and weight. Improving aerodynamics reduces both wind noise and fuel consumption. However, adding sound insulation materials increases vehicle weight, which can slightly reduce fuel efficiency. Manufacturers must balance these factors carefully. In electric vehicles, reducing energy used for active noise cancellation systems can marginally extend range.
Can poor NVH indicate mechanical problems?
Yes, changes in a vehicle’s normal NVH characteristics often serve as early warning signs of mechanical issues. New vibrations might indicate wheel imbalance, bearing wear, or drivetrain problems. Unusual noises could signal exhaust leaks, worn suspension components, or brake issues. If you notice a change in your vehicle’s normal sound or feel, it’s worth having it inspected by a qualified mechanic.
Do electric vehicles have better NVH than combustion engine vehicles?
Electric vehicles eliminate combustion engine noise and vibration, which can result in a quieter, smoother experience. However, this absence of engine noise often makes other sounds more noticeable, such as wind noise, tire noise, and electrical system sounds. Many EV manufacturers invest heavily in NVH engineering to address these secondary noise sources. Premium electric vehicles typically offer excellent NVH characteristics, but this varies by model and price point.
How do manufacturers tune NVH for different vehicle types?
Different vehicle categories have distinct NVH targets based on their intended use and customer expectations. Luxury vehicles prioritize isolation from all external noise and vibration. Sports cars often preserve some engine sound while eliminating unwanted noises. SUVs balance comfort with the robustness expected of utility vehicles. Manufacturers use extensive customer research and competitive benchmarking to establish appropriate NVH targets for each vehicle segment.
